SunGuard® Double Silver

Blue 40

Add to Compare

Download Brochure Calculate Performance Generate BIM Files Generate specification Find a Supplier

Download Brochure Generate BIM Files Generate specification Find a Supplier

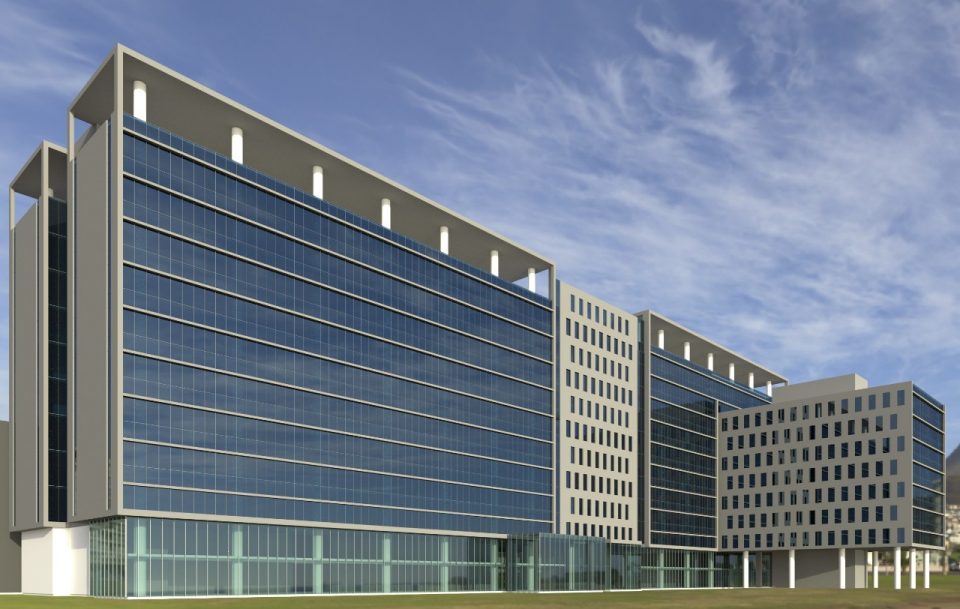

Reduce glare and add a beautiful blue colour to your building facade

Guardian SunGuard™ DS Blue 40 is a high-performance glass solution that offers a good balance of light transmission and solar control for commercial projects. With a visible light transmission of 38%, it allows natural light to enter, while providing excellent solar protection and thermal insulation. This helps to reduce the need for artificial lighting and to enhance the energy efficiency of façades.

Product information

Substrates

Clear 4-12 mm

Applications

Facades

Manufacturing Options

Edge deletion

Recommended Coating Positions

Maximum Size

<3660x2550mm

Edge Deletion

Glass Type

Double Silver Coated Glass

Glass Functions

Solar control
Thermal insulation

Fabrication Options

Must be used in an Insulating Glass Unit

Appearance

Blue

Visual Appearance

Use the Glass Visualizer to get an introductory understanding of how glass will appear in use. Use the Glass Analytics tools to explore even more options for color and performance.

Choose an option

Substrate

There is only one substrate available for this product

View

Left sky conditions

Right sky conditions

This tool intended to represent the reflected/transmitted color ; however, glass color cannot be accurately portrayed online. For more information, launch the Glass Visualizer.

You need more information and additional mockups? Consult our Glass Visualizer Tool:

Launch Glass Visualizer

Calculate Performance Values & Generate BIM Files

Generate product performance data for custom glass make-ups and create detailed BIM object files for your project

Calculate

Performance data

The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.

Default Performance Data
Performance Calculations

Double Glazed

Double Glazed

GLASS: Guardian Clear Glass (India) Glass, 5/32" (4mm) (2-SunGuard® DS Blue 40 (India))

GAP: 100% Air 12.0mm

GLASS: Guardian Clear Glass (India) Glass, 5/32" (4mm)

Calculated Values are in accordance with NFRC2010

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

39 %

Reflectance outside (ρv)

12 %

Reflectance inside (ρv)

16 %

General Color Rendering Index (CRI)

83.3

Ultraviolet

Transmittance UV (τuv)

20 %

Solar Energy

Solar transmittance (τe)

19 %

Reflectance outside (ρe)

26 %

Reflectance inside (ρe)

31 %

Solar absorptance (αe)

56 %

Solar Heat Gain Coefficient (SHGC)

0.24

Shading Coefficient (sc)

0.28

Thermal properties

Winter night U-Value

1.712 W/m²·K

Summer day U-value

1.671 W/m²·K

Light to Solar Gain

Light to Solar Gain (LSG)

1.61

Embodied Co<sub>2</sub>

[eq. kg/m²] A1-A3

27.05

Performance Calculations

SunGuard® Double Silver

Blue 40

Monolithic Not Laminated Monolithic Laminated Double Glazed Not Laminated Double Outer pane Laminated Double Inner pane Laminated Double Inner and Outer pane Laminated Triple Glazed Not Laminated Triple Outer pane Laminated Triple Inner pane Laminated Triple Inner and Outer pane Laminated

With the performance calculator, you can quickly calculate the performance data that matches your own glazing make-up

1 Pane
2 calculation format
3 Results

1 Outer Pane
2 Inner Pane
3 cavity
4 calculation format
5 Results

1 Outer Pane
2 Middle Pane
3 Inner Pane
4 cavity
5 calculation format
6 Results

Choose a glazing

Monolithic

Not available for this product
Double

Not available for this product
Triple

Not available for this product

Monolithic

Monolithic Laminated

Double Glazed

Double Outer pane Laminated

Double Inner pane Laminated

Double Inner and Outer pane Laminated

Triple Glazed

Triple Outer pane Laminated

Triple Inner pane Laminated

Triple Inner and Outer pane Laminated

Outer Pane

Base glass *

There is only one substrate available for this product.

PVB interlayer thickness *

There is only one Interlayer available for this product.

Backing glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Glass thickness are symetrical and represent the glass to be laminated

Coating on surface 1 *

There is only one coating available

Coating on surface 2 *

There is only one coating available

Coating on surface 3 *

There is only one coating available

Coating on surface 4 *

There is only one coating available

Middle Pane

Base glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Coating on surface 3 * Coating on surface 5 *

There is only one coating available

Coating on surface 4 * Coating on surface 6 *

There is only one coating available

Inner Pane

Base glass *

There is only one substrate available for this product.

PVB interlayer thickness *

There is only one Interlayer available for this product.

Backing glass *

There is only one substrate available for this product.

Base glass thickness *

There is only one thickness available, to calculate other thickness' please go to Glass Analytics

Glass thickness are symetrical and represent the glass to be laminated

Coating on surface 5 * Coating on surface 3 * Coating on surface 7 *

There is only one coating available

Coating on surface 6 * Coating on surface 4 * Coating on surface 8 *

There is only one coating available

Coating on surface 7 * Coating on surface 5 * Coating on surface 9 *

There is only one coating available

Coating on surface 8 * Coating on surface 6 * Coating on surface 10 *

There is only one coating available

Choose your calculation format

Standardization *

There is only one calculation standard available

Unit Display *

There is only one unit available for this calculation standard

Results

Calculated Values are in accordance with

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Generate specifications

Generate BIM Objects

Launch another simulation

Need further technical support? Get in contact

There is something wrong with your selection

Performance Data is not currently available for this glass make-up, please launch a new simulation or go to Glass Analytics to configure performance data for your required glass make-up.

Launch another simulation

Submission failed due to a error, please try again

This tool is unavailable on this device

Access our website on a bigger device to be able to use our comparison tool.

Blue 40

Double Glazed

GLASS: Guardian Clear Glass (India) Glass, 5/32" (4mm) (2-SunGuard® DS Blue 40 (India))

GAP: 100% Air 12.0mm

GLASS: Guardian Clear Glass (India) Glass, 5/32" (4mm)

Calculated Values are in accordance with NFRC2010

Performance Values For more details on the performance values displayed and Embodied CO2 please click here

Visible Light

Transmittance (τv)

39 %

Reflectance outside (ρv)

12 %

Reflectance inside (ρv)

16 %

General Color Rendering Index (CRI)

83.3

Ultraviolet

Transmittance UV (τuv)

20 %

Solar Energy

Solar transmittance (τe)

19 %

Reflectance outside (ρe)

26 %

Reflectance inside (ρe)

31 %

Solar absorptance (αe)

56 %

Solar Heat Gain Coefficient (SHGC)

0.24

Shading Coefficient (sc)

0.28

Thermal properties

Winter night U-Value

1.712 W/m²·K

Summer day U-value

1.671 W/m²·K

Light to Solar Gain

Light to Solar Gain (LSG)

1.61

Embodied Co<sub>2</sub>

[eq. kg/m²] A1-A3

27.05
