Clear 65
Clear 65
Superior shades with optimized external reflection
The latest development in the Guardian SunGuard® Solar Plus range of coated solar control glass, SunGuard® Solar Plus Clear 65 provides optical clarity, lower internal and external reflection, as well as energy performance that helps enhance occupant comfort.
SunGuard® Solar Plus Clear 65 has a highly desirable, neutral, transparent appearance with improved visibility and reduced reflection. The glass combines good solar control and thermal insulation with high natural light transmission (67%), yet also low emissivity (0.54 SHGC), helping architects and designers meet energy efficiency certification objectives.
SunGuard® Solar Plus Clear 65 provides low internal and external light reflection (4% and 10% respectively), adding a much more neutral tone to the glass when viewing the glass from inside and outside the building.
The glass can be used in a wide range of commercial and residential applications including curtain walls, doors, windows, facades, partitions, roof windows and skylights. The glass can be used in a double insulating glass
unit or in monolithic applications, where the glass has been tested and proven for its durability.
SunGuard® Solar Plus Clear 65 is available annealed, as well as heat treated or laminated for safety, security or acoustic applications.
Product information
- Clear 4-12 mm
- Partitions
- Windows
- Skylights
- Facades
- Roof window
- Curtain walls
- Doors
- Heat Strengthened
- Colored Interlayers
- Annealed
- Silk screen frit
- Dual Product (Annealed and Heat Treated versions)
- Standard PVB
- Must be Heat Treated
- Bent
- Laminated
- Tempered
- Surface 2 (double IGU)
- 3660mm x 2550mm
- No
- Durable Coated Glass
- Aesthetics
- Improved aesthetics
- Reduced reflection
- Solar control
- Improved visibility
- Thermal insulation
- Can be used Monolithic
- Can be in an Insulating Glass Unit
- Neutral
Visual Appearance
Use the Glass Visualizer to get an introductory understanding of how glass will appear in use. Use the Glass Analytics tools to explore even more options for color and performance.
View
This tool intended to represent the reflected/transmitted color ; however, glass color cannot be accurately portrayed online. For more information, launch the Glass Visualizer.
You need more information and additional mockups? Consult our Glass Visualizer Tool:
The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.
- Default Performance Data
- Performance Calculations
-
Monolithic
-
Double Glazed
Monolithic
GLASS: Guardian Clear Glass (India) Glass, 1/4" (6mm) (2-SunGuard® Solar Plus Clear 65 (India))
Calculated Values are in accordance with NFRC2010
Performance Values For more details on the performance values displayed and Embodied CO2 please click here

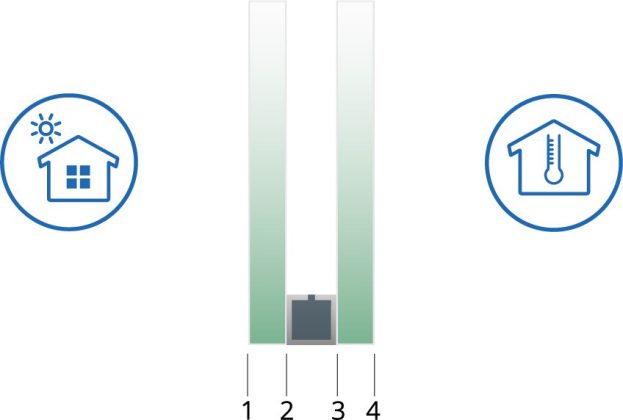

Double Glazed
GLASS: Guardian Clear Glass (India) Glass, 1/4" (6mm) (2-SunGuard® Solar Plus Clear 65 (India))
GAP: 100% Air 12.0mm
GLASS: Guardian Clear Glass (India) Glass, 1/4" (6mm)
Calculated Values are in accordance with NFRC2010
Performance Values For more details on the performance values displayed and Embodied CO2 please click here
-
Monolithic
Not available for this product
-
Double
Not available for this product
-
Triple
Not available for this product
Monolithic
Monolithic Laminated
Double Glazed
Double Outer pane Laminated
Double Inner pane Laminated
Double Inner and Outer pane Laminated
Triple Glazed
Triple Outer pane Laminated
Triple Inner pane Laminated
Triple Inner and Outer pane Laminated
Access our website on a bigger device to be able to use our comparison tool.
Can’t find the glass make-up you are looking for? Go to Glass Analytics for more detailed configurations:
