SunGuard® Solar Plus

Green 50

Add to Compare

Download Brochure Calculate Performance Generate BIM Files Generate specification Find a Supplier

Download Brochure Generate BIM Files Generate specification Find a Supplier

SunGuard® Solar Plus Green 50 is a new addition to the Guardian SunGuard® Solar Plus range of coated solar control glass. Solar Plus Green 50 is the preferred choice when architects and designers are looking for a glass with a soothing green appearance that offers exceptional solar control and thermal insulation performance. The glass is also a more energy-efficient alternative to body-tinted green glass.

Even in monolithic form, Solar Plus Green 50 combines excellent solar control and thermal insulation with high natural light transmission (54%), but also offers low internal reflection (4%) and external reflection (16%). With a solar

heat gain coefficient of 0.44, the glass helps architects and designers meet energy efficiency certification objectives.

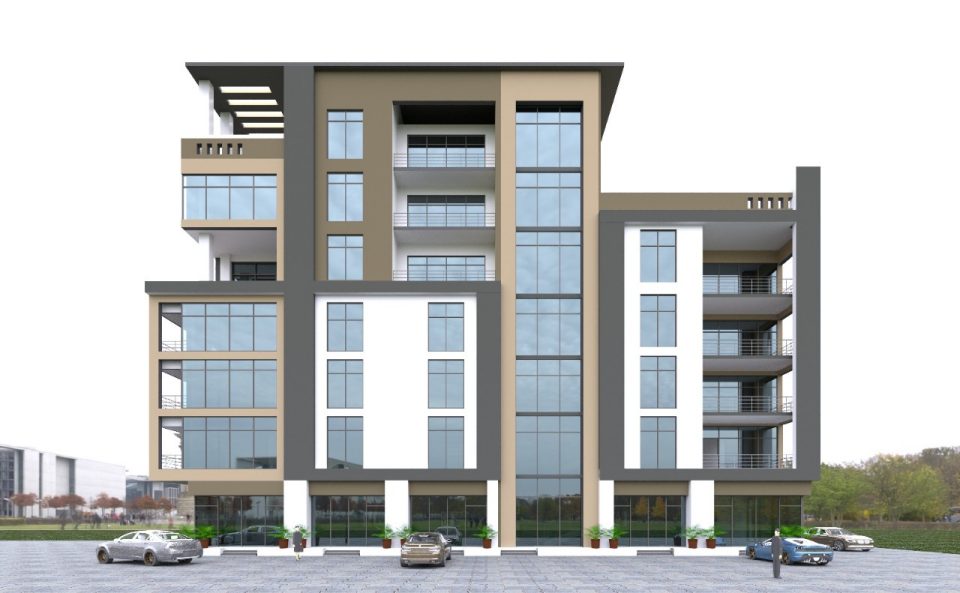

Green 50 can be used in a wide range of commercial and residential applications including curtain walls, windows, facades, partitions, roof windows and skylights. The glass can be used in a double insulating glass unit or in monolithic applications, where the glass has been tested and proven for its durability.

Green 50 is designed on clear float glass. The glass is available annealed, as well as heat treated or laminated for safety, security or acoustic applications

Product information

Substrates

Clear 4-12 mm

Applications

Partitions
Windows
Skylights
Facades
Roof window
Curtain walls

Manufacturing Options

Heat Strengthened
Colored Interlayers
Annealed
Silk screen frit
Standard PVB
Bent
Laminated
Tempered

Recommended Coating Positions

Surface 2 (double IGU)
Surface 2 (single IGU)

Maximum Size

<3660x2550mm

Edge Deletion

Glass Type

Durable Coated Glass

Glass Functions

Reflective
Aesthetics
Solar control

Fabrication Options

Can be Laminated
Can be used Monolithic
Can be in an Insulating Glass Unit

Appearance

Green

Visual Appearance

Use the Glass Visualizer to get an introductory understanding of how glass will appear in use. Use the Glass Analytics tools to explore even more options for color and performance.

Choose an option

Substrate

There is only one substrate available for this product

View

Left sky conditions

Right sky conditions

This tool intended to represent the reflected/transmitted color ; however, glass color cannot be accurately portrayed online. For more information, launch the Glass Visualizer.

You need more information and additional mockups? Consult our Glass Visualizer Tool:

Launch Glass Visualizer

Calculate Performance Values & Generate BIM Files

Generate product performance data for custom glass make-ups and create detailed BIM object files for your project

Calculate

Performance data

The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.

Default Performance Data
Performance Calculations

Monolithic
Double Glazed

Monolithic

GLASS: Guardian Clear Glass (India) Glass, 1/4" (6mm) (2-SunGuard® Solar Plus Green 50 (India))

Calculated Values are in accordance with NFRC2010

Performance Values

Visible Light

Transmittance (τv)

54 %

Reflectance outside (ρv)

16 %

Reflectance inside (ρv)

4 %

General Color Rendering Index (CRI)

93.2

Ultraviolet

Transmittance UV (τuv)

32 %

Solar Energy

Solar transmittance (τe)

34 %

Reflectance outside (ρe)

18 %

Reflectance inside (ρe)

20 %

Solar absorptance (αe)

48 %

Solar Heat Gain Coefficient (SHGC)

0.44

Shading Coefficient (sc)

0.52

Thermal properties

Winter night U-Value

4.210 W/m²·K

Summer day U-value

3.480 W/m²·K

Light to Solar Gain

Light to Solar Gain (LSG)

1.22

Embodied Co2

[eq. kg/m²] A1-A3

21.18

Double Glazed

GLASS: Guardian Clear Glass (India) Glass, 1/4" (6mm) (2-SunGuard® Solar Plus Green 50 (India))

GAP: 100% Air 12.0mm

GLASS: Guardian Clear Glass (India) Glass, 1/4" (6mm)

Calculated Values are in accordance with NFRC2010

Performance Values

Visible Light

Transmittance (τv)

48 %

Reflectance outside (ρv)

19 %

Reflectance inside (ρv)

11 %

General Color Rendering Index (CRI)

91.1

Ultraviolet

Transmittance UV (τuv)

24 %

Solar Energy

Solar transmittance (τe)

28 %

Reflectance outside (ρe)

19 %

Reflectance inside (ρe)

19 %

Solar absorptance (αe)

53 %

Solar Heat Gain Coefficient (SHGC)

0.37

Shading Coefficient (sc)

0.42

Thermal properties

Winter night U-Value

2.145 W/m²·K

Summer day U-value

2.228 W/m²·K

Light to Solar Gain

Light to Solar Gain (LSG)

1.31

Embodied Co2

[eq. kg/m²] A1-A3

38.80
